Product catalogue

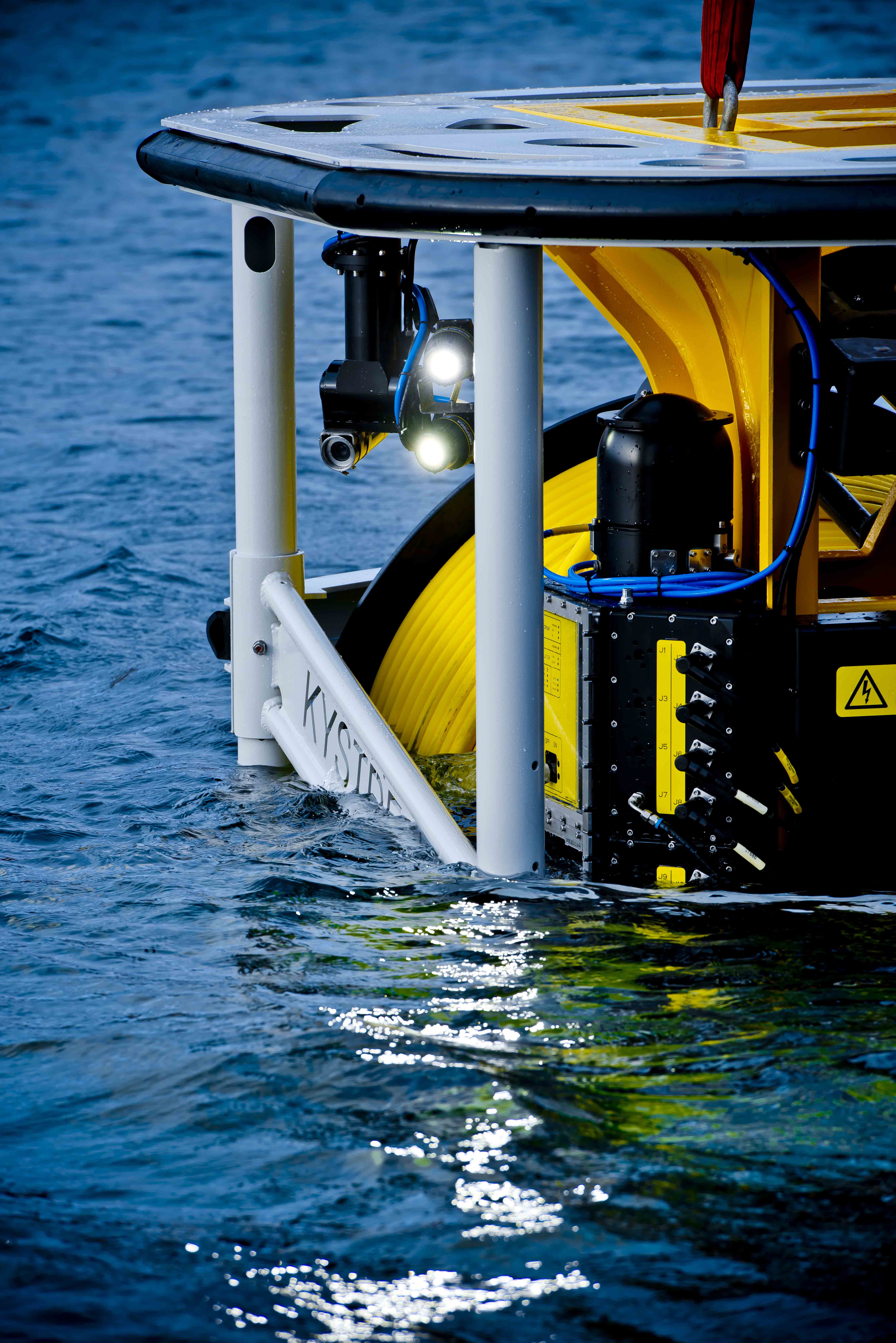

Subsea pan & tilt units.
Two series, eight configurations. Pan and tilt or pan-only, aluminium or titanium, all rated down to 6000 metres.
Compact precision
115 Series.
Designed for continuous, hard use in demanding subsea environments. The 115 Series withstands thruster wash and physical impact through its high-mounted rotation axis and precision strain wave gears.
SPT-115
SPA-115
SPT-315
SPA-315
6000 m rated
12-bit absolute
Electrical
Input voltage24 VDC
Drive current500 mA - 2.5 A per axis
CommunicationEthernet / Modbus UDP, RS-485 or RS-232
ConnectorCustomer selectable
Mechanical
Pan range± 175°
Tilt range± 175° single / ± 110° dual yoke
Max speed30 °/sec
Single step0.018°
Position feedback12-bit absolute, approx. 0.1°
Backlash< 3 arc min, approx. 0.05°
Environmental & physical
Operating depthDown to 6000 m
Average torque15 Nm
Max payload20 kg dual yoke / 10 kg single yoke
Dimensions238 × 130 × 88 mm
Weight in air5.2 kg aluminium
Weight in water3.4 kg aluminium
Heavy-duty control
150 Series.
The 150 Series is built for high-payload applications. With 50 Nm of torque and a dual-yoke capacity of 100 kg, it handles large cameras, sonar heads and heavy intervention tooling.
SPT-150
SPA-150
SPT-350
SPA-350
100 kg payload
Titanium available
Electrical
Input voltage24 VDC
Drive current4 A
CommunicationEthernet / Modbus UDP, RS-232 or RS-485
ConnectorSeacon MCBH5 / customer selectable
Mechanical
Pan range± 175°
Tilt range± 110° yoke mounted
Max speed20 °/sec
Single step0.018°
Position feedback12-bit absolute, approx. 0.1°
Backlash< 3 arc min, approx. 0.05°
Environmental & physical
Operating depthDown to 6000 m
Average torque50 Nm
Max payload100 kg dual yoke / 50 kg single yoke
Dimensions302.8 × 166.2 × 110 mm
Weight in air10.4 kg Al / 13.0 kg Ti
Weight in water6.9 kg Al / 9.5 kg Ti
Compare
115 Series vs. 150 Series.
| Specification | 115 Series | 150 Series |
|---|---|---|
| Operating depth | 6000 m | 6000 m |
| Average torque | 15 Nm | 50 Nm |
| Max payload, dual yoke | 20 kg | 100 kg |
| Pan range | ± 175° | ± 175° |
| Tilt range | ± 175° / ± 110° | ± 110° |
| Max speed | 30 °/sec | 20 °/sec |
| Position resolution | 12-bit, approx. 0.1° | 12-bit, approx. 0.1° |
| Backlash | < 3 arc min | < 3 arc min |
| Dimensions | 238 × 130 × 88 mm | 302.8 × 166.2 × 110 mm |
| Material | Aluminium / titanium on request | Aluminium / titanium |
| Communication | Ethernet / Modbus UDP, RS-485, RS-232 | Ethernet / Modbus UDP, RS-485, RS-232 |
Configuration support
Not sure which unit fits?
Share payload, mounting, connector and communication requirements. Actuade will help specify the correct series and configuration.
